EQUIPMENT

One of the most comprehensive jobbing shops in Ontario.

List of Equipment

Barrie Welding & Machine (1974) Ltd caters to all your necessary machining, welding, fabrication, and quality needs. The exhaustive variety of equipment within our facility permits us to tackle even the most complex challenges. Contact us for further details.

CNC Mill + Turn Combinations

  • Rafamet CNC vertical turning and milling center
    • 197” table x 315” maximum diameter swing x 177” height capacity
    • 100 metric ton maximum weight capacity
    • Dual rams, side head, C axis, and live milling tooling
  • Giddings & Lewis MAG Model VTC2500 vertical turning and milling center
    • Twin 98” tables with pallet changer x 106” maximum diameter swing
    • 89” height capacity and live milling tooling
  • Berthiez CNC vertical turning and milling center
    • Twin 80” tables with pallet changer x 102” maximum diameter swing
    • 60” height capacity, live milling tooling, and 90-degree tooling attachment
  • Giddings & Lewis CNC vertical turning and milling center
    • 48” table with 60” maximum diameter swing
    • Dual rams and live milling tooling
  • 2 Okuma MacTurn
  • 3 Mazak Integrex

CNC Milling

Our mills and machining equipment include the following:

  • Cincinnati floor type CNC horizontal boring mill
    • 408” x 180” working area, 58” column infeed, and 24” spindle travel
    • Attachment apartment with 90-degree heads and universal attachments
    • Integrated 90-ton rotary table with 118” infeed travel
  • G&L 8” table type CNC horizontal boring mill
    • 363” x 157” working area, 54” column infeed, and 69” spindle travel
    • 8” spindle with 90-degree heads and universal attachments
    • Maximum workpiece weight of 100 tons
  • Rivolta CNC horizontal floor type boring mill
    • 314” x 118” working area, 49” ram travel, indexing 90-degree head
    • Integrated 20-ton capacity rotary table with 67” infeed
  • 15+ CNC vertical machining centers
    • Up to 165” x 40” x 30” working area, up to 15,000 RPM
    • Through spindle coolant
    • 7 machines with true 4 and 5 axis capabilities
  • Gantry and C-frame mills available.
  • 5+ CNC horizontal machining centers
    • Up to 62” x 42” x 39” working area, including dual pallets
    • Up to 10,000 RPM and through spindle coolant available
  • 10+ Combination Bridgeport style CNC and manual mills

Conventional MillING

Conventional mills in our inventory include:

  • Conventional 6” horizontal floor type boring mill
    • 314” x 96” working area x 46” spindle travel
    • 79” x 71” rotary table with 46” infeed
  • 2 conventional 4” and 5” spindle horizontal table boring mills
    • Up to 71.5” x 64”working area x 35.5” spindle travel
    • 72” rotary table, swing heads, and assorted attachments
  • 25+ conventional universal and vertical mills
    • Up to 20” x 87” working areas
  • 4 slotters
    • Up to 14” stroke
  • 20+ drill presses and radial drill
    • Up to 80” radius, 72” spindle to base
  • 2 key broaching machines

CNC & Conventional Turning

Lathes and grinders we hold include:

  • 5+ CNC long series lathes
    • Up to 63½”diameter over ways and 49”diameter over carriage
    • Up to 512” between centers
  • 10+ CNC lathes
    • Up to 51”diameter x 180” between centers
  • Large diameter conventional lathe
    • 86.6” diameter over ways x 74” diameter over carriage
    • 492” between centers, 3-way bed, and 2 carriages
  • 6 large conventional lathes
    • Up to 48” diameter over ways x 40” diameter over carriage
    • Up to 480” between centers
  • 25+ conventional lathes
    • Up to 29” diameter x 168” between centers

CNC & Conventional Vertical Turning

  • Farrel CNC vertical boring mill
    • 144” table x 204” maximum diameter swing x 134” height capacity
    • 50 ton maximum weight capacity and dual rams
  • Berthiez CNC vertical boring mill
    • 144” table x 264” maximum diameter swing x 60” height capacity
    • 86” travel on x axis with single ram and side head
  • Conventional vertical boring mill
    • 66” maximum diameter x 44” under rail, 72” swing

CNC Measuring Equipment

This includes:

  • 3 CMM Machines
    • Up to 144” x 96” x 60” working area
    • Renishaw PH 20 touch-probe heads
  • Faro Arm

CNC and Conventional Grinding

  • CNC cylindrical grinder.
    • 18” OD x 72” between centers, complete with internal grinding attachment
  • Walter CNC tool and cutter grinder
    • 24 HP complete with auto loader
  • 2 conventional Blanchard grinders
    • 60” diameter magnet and up to 80” swing
  • Conventional Long stroke grinder
    • 120” long x 24” wide magnetic table
    • 30” diameter segmented Blanchard type head
  • 10+ Surface grinders
    • Up to 20” x 48” travel
  • 3 – 12” Cylindrical grinders
    • Up to 12” OD x 36” centers with internal grinding attachment
  • Heald internal grinder

Cutting Technologies

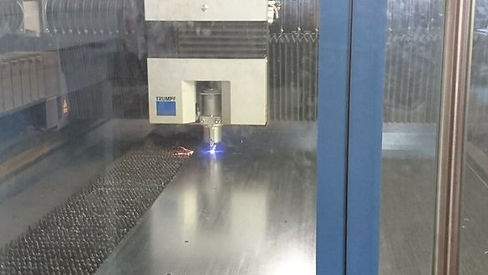

  • 6000 Watt TRUMPF laser profile cutter
    • 60” x 120” dual pallet capacity
  • Messer plasma torch table
    • 400 amp high definition plasma, and dual oxy-fuel torches 120” x 150”
  • Flow waterjet with 60,000 psi
    • 72” x 144” cutting surface
  • 20+ Band saws
    • Up to 25” x25” or 20” x 30”, 3 with auto feed
  • 6+ modern portable plasma cutters with attachments

Fabrication and Welding

  • 5 Press brakes
    • CNC and manual up to 600 ton and 192” bend length
  • 4 Plate rolls
    • Up to ½ “ x 120” plate
  • 1 angle rolls
    • 3½” x 3½” angle x ½”
  • 100+ Welding machines
    • TIG and MIG for steel, stainless steel, and aluminum
    • MIG up to 1500 amp
    • Sub arc welding
    • In shop and portable stick welding available
    • CWB certified for SMAW, GMAW, GTAW, and SAW
  • 6+ Portable welding units
    • MIG and AC TIG features, arc air compressor, complete with generator capacity to run plasma cutting
  • 2+ Weld manipulators
  • 20+ Weld positioners
    • Up to 36,000 lbs cap at 48” and 40,000lbs capacity at 12”
  • 6+ Tank rolls sets
    • Up to 100 ton capacity
  • 4 Iron workers
  • 4 Shears
    • Up to ½” x 120”
  • 5 Benders
    • Angle and pipe
  • Bore welding machine
  • Robotic welding cell for high volume manufacturing
  • Spray welding unit
  • Portable pipe coping machine

Miscellaneous Equipment

  • 120+ Overhead cranes
    • Up to 100 ton capacity with 25 ton auxiliary on one bridge
  • 30+ Forklifts
    • Up to 35,000 lb capacity on versa lift with hydraulic boom attachments
  • 50+ Truck fleet of pickups, flatbeds, tilt and load, etc.
  • 6+ Mobile service trucks
    • Equipped for onsite heavy equipment breakdowns and repairs
  • Portable hydraulic power packs and jacks
    • Up to 300 tons capacity and 125 ton hole jacks
  • 10+ Hydraulic and arbor presses
    • Up to 150 ton output force
  • 20+ Man lifts and booms
    • Extending up to 65 feet
  • 4 portable scales
    • Up to 40 ton capacity
  • Multipliers and hydraulic ratchets
    • Up to 1½” drives
  • 2 Portable line bore units
    • Bore and weld for onsite repairs
  • Portable mills
    • Designed and built for on-site machining
  • Portable magnetic drills
  • Portable band saws
  • 30+ lifting magnets
    • Up to 5000lbs capacity
